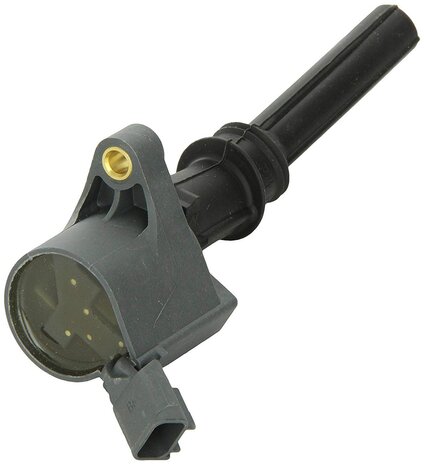

FD503T | Ignition Coil

Tip
When one ignition coil fails (especially on a vehicle with higher mileage), you should replace all of the ignition coils with a new set. That's because one worn out coil means the other coils have been subjected to the same extreme heat stress and wear. In the long run, the most cost-effective repair is to replace the full set of coils.

Location: Valve Cover
Mounting Bracket Included: Yes
Grease Pack: No
Hardware Included: No
Instructions Included: No
Oil Filled: No
Ignition Type: Coil on Plug
Coil Type: Electronic
Mounting Type: Bolt-On
Voltage: 12 Volts

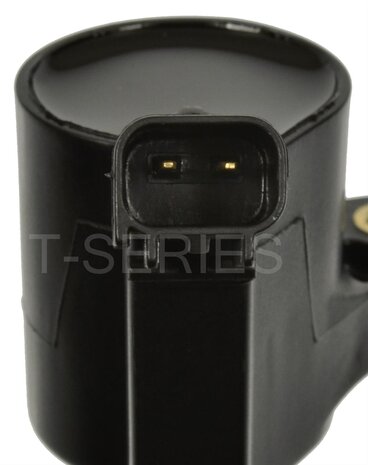

Connector Quantity: 1
Connector Type: Plug-In
Connector Gender: Female
Connector Shape: Rectangular, Square
Terminal Quantity: 2
Terminal Type: Blade
Terminal Gender: Male

Fits:

Ford
Club Wagon 1997-1998
Crown Victoria 1998-2011
E-series 1997-2014
Excursion 2000-2005
Expedition 1997-2004
Explorer 2002-2005
F-150 1997-2009
F-250 1997-2004
F-350 1999-2004
F-450 1999-2004
F-550 1999-2004
Grand Marquis 1998-2004
Lobo 2001-2008
Mustang 1999-2004

Lincoln
Blackwood 2002
Navigator 1998-1999
Town Car 1998-2011

Mercury
Grand Marquis 1998-2011
Mountaineer 2002-2005
